| Brand Name: | LG |
| Model Number: | LB650DUY-SHA1 |
| MOQ: | 17 pieces |
| Price: | $113.99/pieces 17-272 pieces |
| Payment Terms: | T/T,D/P,Western Union |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Attribute | Value |
|---|---|
| Type | TFT |
| Display Size | 65 inches |
| Supplier Type | Original manufacturer |
| Product name | LCD screen |
| Keyword | LCD screen |
| MOQ | 1 Pcs |
| Refresh rate | 60Hz |
| Best perspective | 89/89/89/89(Min.) |
| Supply Capacity | 2000slice / month |
| Port | Guangzhou Shenzhen Dongguan |

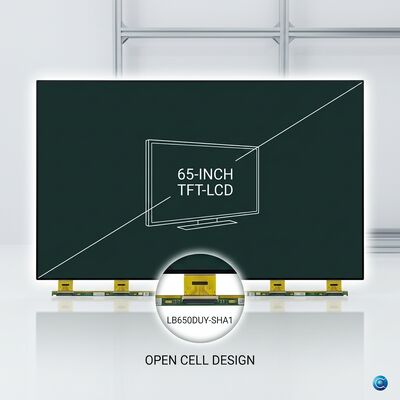

The LG Display LB650DUY-SHA1 is a 65‑inch a‑Si TFT‑LCD open‑cell panel from LG's Standard Series, offering reliable performance and excellent value for mainstream TV manufacturing and replacement markets. Featuring a Ultra HD 4K resolution of 3840×2160 (68 PPI) in an RGB vertical-stripe layout, this SHA1 variant standard grade with balanced specifications for cost-effective TV production. Built with advanced IPS (In-Plane Switching) technology, the LB650DUY-SHA1 delivers a static contrast ratio of 1200:1 with 72% NTSC color gamut coverage and a peak brightness of 350 cd/m². The panel achieves a fast 8ms (GtG) response time, ensuring smooth motion handling for video content without ghosting or motion blur. Wide viewing angles of 89°/89°/89°/89° (L/R/U/D) ensure consistent color and contrast from any seating position. The matte anti-glare surface treatment (Haze 25%) effectively reduces ambient light reflections, making it suitable for various lighting conditions. Supporting Mini LVDS interface with a 51-pin connector for the standard 2-channel 8-bit configuration, this open cell requires an external backlight unit and T-CON board (sold separately) for complete display integration. With an operational temperature range of 0°C to 50°C and a rated panel lifetime of 30,000 hours, the LB650DUY-SHA1 is engineered for SHA1-specific reliability. Ideal applications include public venue information screens, premium home cinema systems, command and control center monitors, and corporate boardroom displays.
| Screen Size | 65 inches |
| Resolution | 3840×2160 (Ultra HD 4K) |
| Panel Type | a‑Si TFT‑LCD (IPS) |
| Interface Type | V-by-One 8 Lane |
| Color Depth | 8-bit — 16.7M colors |
| Refresh Rate | 60Hz |
| Response Time | 8ms (GtG) |
| Contrast Ratio | 1200:1 |
| Brightness | 350 cd/m² |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) |
| Surface Treatment | Anti-Glare (Haze 25%), Hard Coating (3H) |
| Operating Temperature | 0°C to 50°C |
| Panel Lifetime | 30,000 hours |
| Model Number | LB650DUY-SHA1 |
| Place of Origin | Republic of Korea |
Sticker model: LB650DUY-SHA1
